Tensile testing, a type of destructive testing, is a mechanical test method used to determine the mechanical properties of materials, particularly their response to tensile forces or tension.
This test helps engineers and material scientists understand how materials behave under stretching or pulling forces and provides essential information about their strength, ductility, and other mechanical characteristics.

Here's an overview of how tensile testing works:

Sample Preparation: A specimen, often in the form of a standardized shape (such as a cylindrical bar or a dog bone-shaped sample), is carefully machined from the material to be tested. The specimen dimensions and shape adhere to recognized testing standards.

Mounting: The specimen is mounted into a testing machine, often called a universal testing machine or tensile testing machine. The machine has gripping jaws that securely hold the specimen without damaging it.

Application of Force: The testing machine applies an axial force to the specimen, causing it to stretch or elongate. This force is typically applied at a constant rate, known as the strain rate.

Stress-Strain Measurement: As the force is applied, the machine measures the corresponding deformation or elongation of the specimen. This deformation is converted into strain, which is the ratio of the change in length to the original length of the specimen.
Simultaneously, the machine measures the applied force.

Stress-Strain Curve: The relationship between the applied force and the resulting strain is used to calculate stress, which is the force per unit area (cross-sectional area) of the specimen.
The stress-strain curve generated during the test provides valuable information about the material's mechanical properties.

Yield Point, Ultimate Tensile Strength, and Fracture: The stress-strain curve typically exhibits distinct points, such as the yield point (where permanent deformation starts), the ultimate tensile strength (the maximum stress the material can withstand), and the fracture point (where the specimen breaks).

Mechanical Properties: The tensile test provides essential mechanical properties such as yield strength, ultimate tensile strength, elongation, reduction in area, and Young's modulus. These properties help characterize the material's performance in real-world applications.

Analysis: The recorded data from the test are analyzed to determine the material's behavior under tension. Engineers use this data to assess the material's suitability for specific applications, such as in construction, manufacturing, and structural design.

Tensile testing is widely used for various materials, including metals, polymers, composites, and ceramics. It provides crucial information for quality control, material selection, and the design and safety of structures and components.
The standardized testing procedures and well-defined material properties obtained from tensile testing contribute to the understanding and advancement of materials science and engineering.

Impact testing, specifically Charpy impact testing, is a destructive testing method used to assess the toughness and impact resistance of materials, especially metals and other structural materials.
This test helps determine how a material behaves when subjected to sudden and dynamic loading, simulating conditions like sudden impacts or collisions. Charpy impact testing is crucial in understanding how materials will respond in scenarios where sudden forces or impacts could occur.

Here's an overview of how Charpy impact testing works:

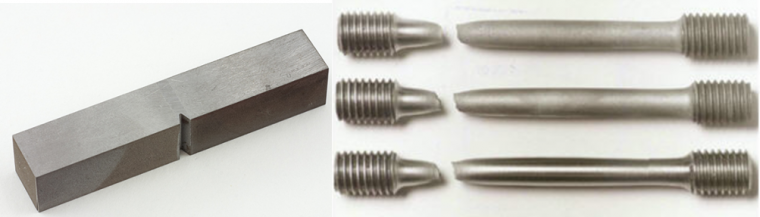

Sample Preparation: A standardized specimen, usually in the form of a notched bar with a specific geometry, is machined from the material to be tested. The notched area introduces a stress concentration, making it a critical location for evaluating the material's ability to withstand impact.

Mounting: The specimen is placed in a specialized Charpy impact testing machine, often referred to as an impact tester. The machine has a pendulum arm with a heavy hammer at one end and supports the specimen at the other.

Striking the Specimen: The pendulum arm is lifted to a predetermined height, and then released. The hammer strikes the notched area of the specimen, causing it to break or fracture.

Energy Absorption: The impact causes the pendulum arm to lose a portion of its initial energy, which is absorbed by the specimen during fracture. The amount of energy absorbed by the specimen is a measure of its toughness and ability to resist sudden forces.

Measurement: The impact tester measures the amount of energy absorbed by the specimen during fracture. This energy is often referred to as the impact energy, and it's measured in joules (J) or foot-pounds (ft-lbs).

Results and Interpretation: The recorded impact energy is used to evaluate the material's behavior under sudden loading. Higher absorbed energy values indicate better impact resistance and toughness, while lower values suggest reduced toughness and susceptibility to brittle fracture.

Temperature Variations: Charpy impact testing is often conducted at different temperatures to assess how the material's impact properties change under varying conditions. This is particularly important in applications where materials are exposed to extreme temperatures.

Charpy Impact Test Curve: The results from multiple tests conducted at different temperatures can be plotted on a Charpy impact test curve, showing how the material's impact energy changes with temperature.

Charpy impact testing is used extensively in industries where materials are subject to impact loading, such as construction, manufacturing, and aerospace. The results of the tests provide valuable insights into material behavior, aiding in material selection, quality control, and structural design.

The bend test is a destructive testing method used to evaluate the ductility, toughness, and soundness of materials, especially metals and welded joints.
This test involves subjecting a standardized specimen to bending forces until it fractures or exhibits a specified amount of deformation. The bend test is particularly useful for assessing how well a material can withstand bending or flexural stresses without cracking or breaking.

Here's an overview of how the bend test works:

Sample Preparation: A specimen, often in the form of a rectangular or cylindrical bar, is machined or cut from the material to be tested. The specimen dimensions and geometry adhere to recognized testing standards.

Specimen Notching: In some cases, a notch is introduced into the specimen, creating a stress concentration point. This is particularly common when testing welds or heat-affected zones.

Bending Apparatus: The specimen is placed in a bending apparatus, which consists of two supports spaced a specific distance apart. The distance between the supports determines the amount of bending the specimen will experience.

Bending Force Application: The bending force is applied to the center of the specimen between the supports. The force can be applied manually or using a mechanical or hydraulic bending machine. The force is gradually increased until the specimen bends to a specified angle or until it fractures.

Deformation Measurement: The amount of deformation, often measured in degrees of bend, is recorded. For materials with brittle behavior, like cast iron, the focus is on measuring the angle at which the specimen fractures. For more ductile materials, the permanent deformation is often more critical.

Fracture Examination: If the specimen fractures, the nature of the fracture is examined. The location and characteristics of the fracture can provide insights into the material's behavior and quality.

Results and Interpretation: The results of the bend test provide valuable information about the material's ductility and toughness. A brittle material is likely to fracture without significant deformation, while a ductile material will exhibit more deformation before breaking.

Standards and Acceptance Criteria: Bend test standards vary based on the material being tested and the application. Acceptance criteria define the allowable amount of deformation or the maximum angle at which the specimen can fracture while still meeting quality requirements.

The bend test is commonly used in industries such as construction, manufacturing, and fabrication. It helps assess the suitability of materials for bending and forming processes and provides insights into the performance of welded joints, especially those in critical applications.

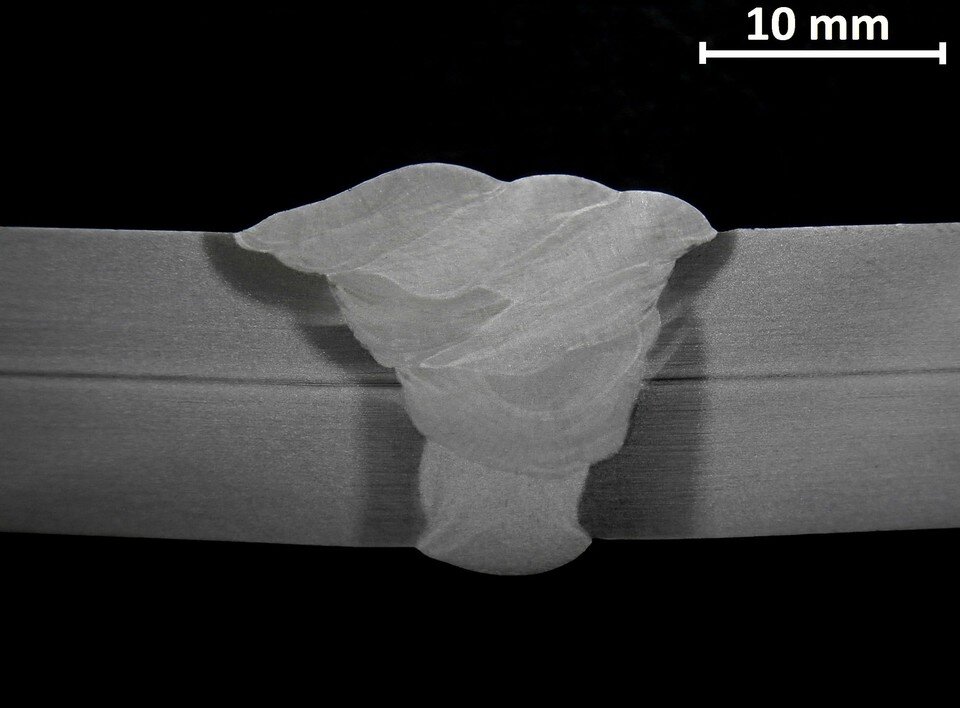

Macroscopic testing, a type of destructive testing, involves the visual and dimensional examination of materials, components, or structures using the naked eye or low-magnification optical devices.
This testing method allows inspectors to assess the overall quality, surface condition, and general characteristics of a specimen without the need for specialized equipment. Macroscopic testing is particularly useful for identifying surface defects, irregularities, and features that are visible to the unaided eye.

Here's an overview of how macroscopic testing works:

Sample Preparation: A representative specimen or component is prepared for examination. The sample's size and shape depend on the purpose of the testing.

Visual Examination: The specimen is thoroughly inspected using the naked eye or handheld magnifying lenses. Inspectors observe the surface for any visible defects, such as cracks, scratches, corrosion, inclusions, porosity, weld irregularities, and surface finish quality.

Dimensional Inspection: Measurements are taken to assess the dimensions, tolerances, and geometrical properties of the specimen. This may involve using basic measuring tools such as rulers, calipers, and gauges.

Surface Condition: The condition of the specimen's surface is assessed, looking for signs of wear, erosion, oxidation, discoloration, or other surface abnormalities.

Documentation: Observations and measurements are documented, and any findings are recorded for quality control, record-keeping, and further analysis.

Macroscopic testing is often used as an initial step in the inspection process, providing a quick overview of the material or component's condition. While it does not provide detailed information about internal defects or material properties, macroscopic testing is valuable for identifying visible defects that may require further investigation or more advanced testing methods.

This testing method is commonly employed in various industries, including manufacturing, construction, aerospace, automotive, and more. It's a cost-effective way to quickly assess the overall quality of materials and components before deciding whether additional testing or analysis is necessary.

Hardness testing is a destructive testing method used to assess the hardness or resistance to deformation of a material's surface. This testing method provides valuable information about a material's strength, wear resistance, and suitability for specific applications.
Different types of hardness tests are available, each with its own principles and techniques, but all involve indenting or impressing a harder object into the material's surface and measuring the depth or size of the resulting indentation.

Here's an overview of how hardness testing works:

Sample Preparation: A flat, polished, and clean surface of the material to be tested is prepared. The surface should be free from contaminants, irregularities, and surface coatings.

Indentation: A controlled force is applied to the material's surface using an indenter made of a harder material, usually a diamond or a hard steel ball. The indenter is pressed into the material with a specific force for a predefined period.

Measurement: The resulting indentation's size or depth is measured. This measurement is often related to the material's hardness and can be used to compare the material's hardness to reference standards.

Hardness Scales: Different hardness scales are used based on the indenter type, applied force, and measurement method. Common hardness scales include Rockwell, Brinell, Vickers, and Knoop.

Conversion: The measured indentation dimensions are often converted into hardness values using standard tables or formulas. The hardness values can be expressed as a numeric value associated with the specific hardness scale used.

Results Interpretation: The hardness value obtained from the test provides insights into the material's mechanical properties. Higher hardness values generally indicate greater resistance to indentation and deformation.

Applications: Hardness testing is widely used in various industries to assess material quality, select appropriate materials for specific applications, and monitor manufacturing processes. It's particularly useful for quality control, material selection, and ensuring the performance of components subjected to wear and abrasion.

Different hardness tests are suitable for different materials and applications. The choice of test method depends on factors such as the material's composition, the required accuracy, the available equipment, and the desired testing depth.

Hardness testing is a non-destructive way to gather information about a material's mechanical properties, and it plays a crucial role in material characterization, quality assurance, and product development.
